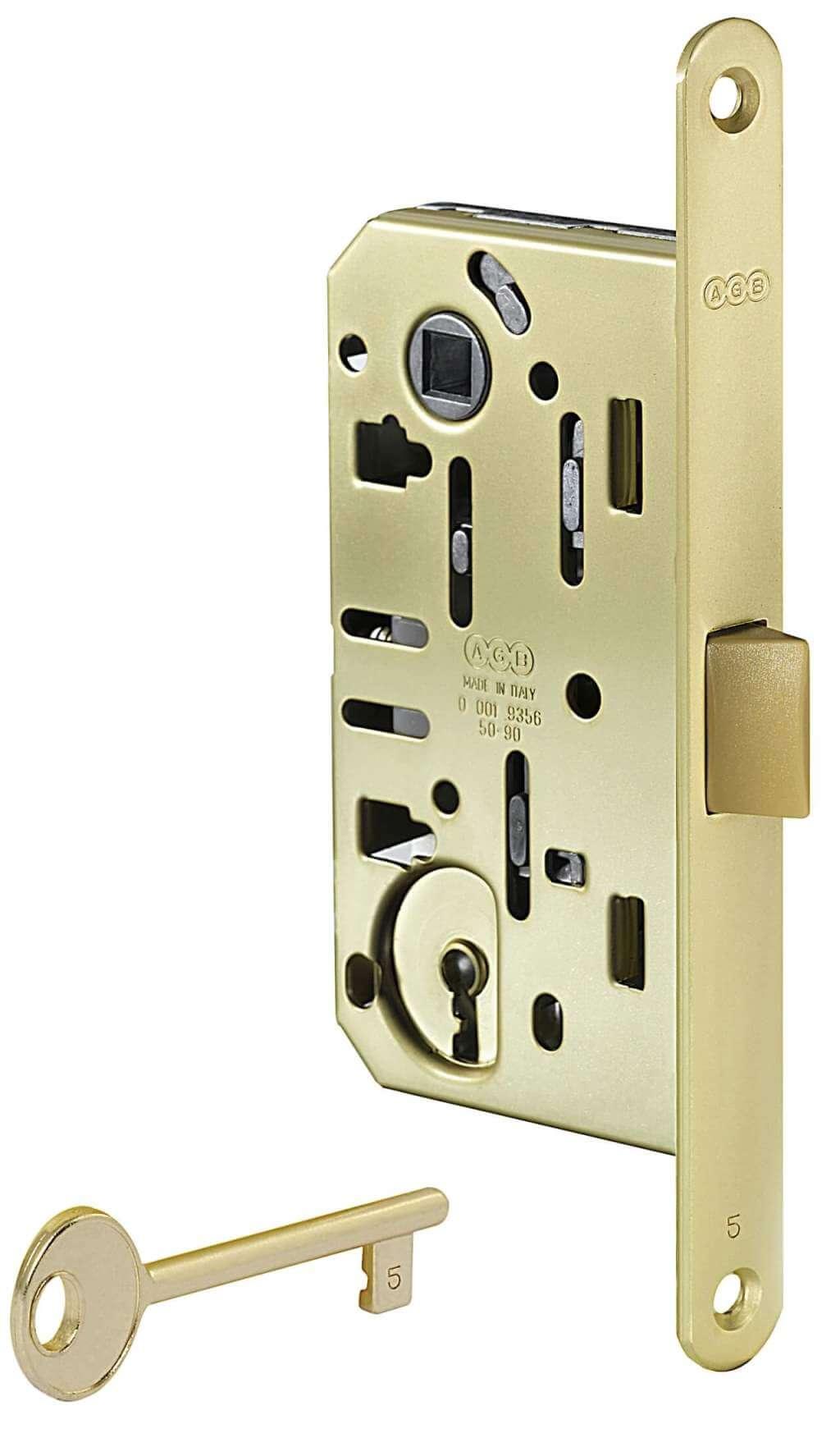

Built-in lock with central latch in polyamide, a
special non-deformable nylon that combines maximum
resistance to wear with silence in the impact on the strikers.
A metal latch with nylon insert is also available on request, to be ordered separately.
The latch also acts as a deadbolt and maintains the characteristic
self-adjusting double bevel AGB: its shape and dimensions
have been designed to avoid annoying shaking when the door is closed.
The key blocks the latch, but leaves the handle free to
avoid damage from involuntary forcing. 18 mm steel front

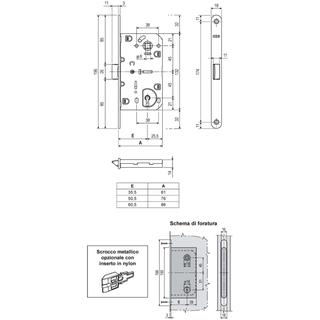

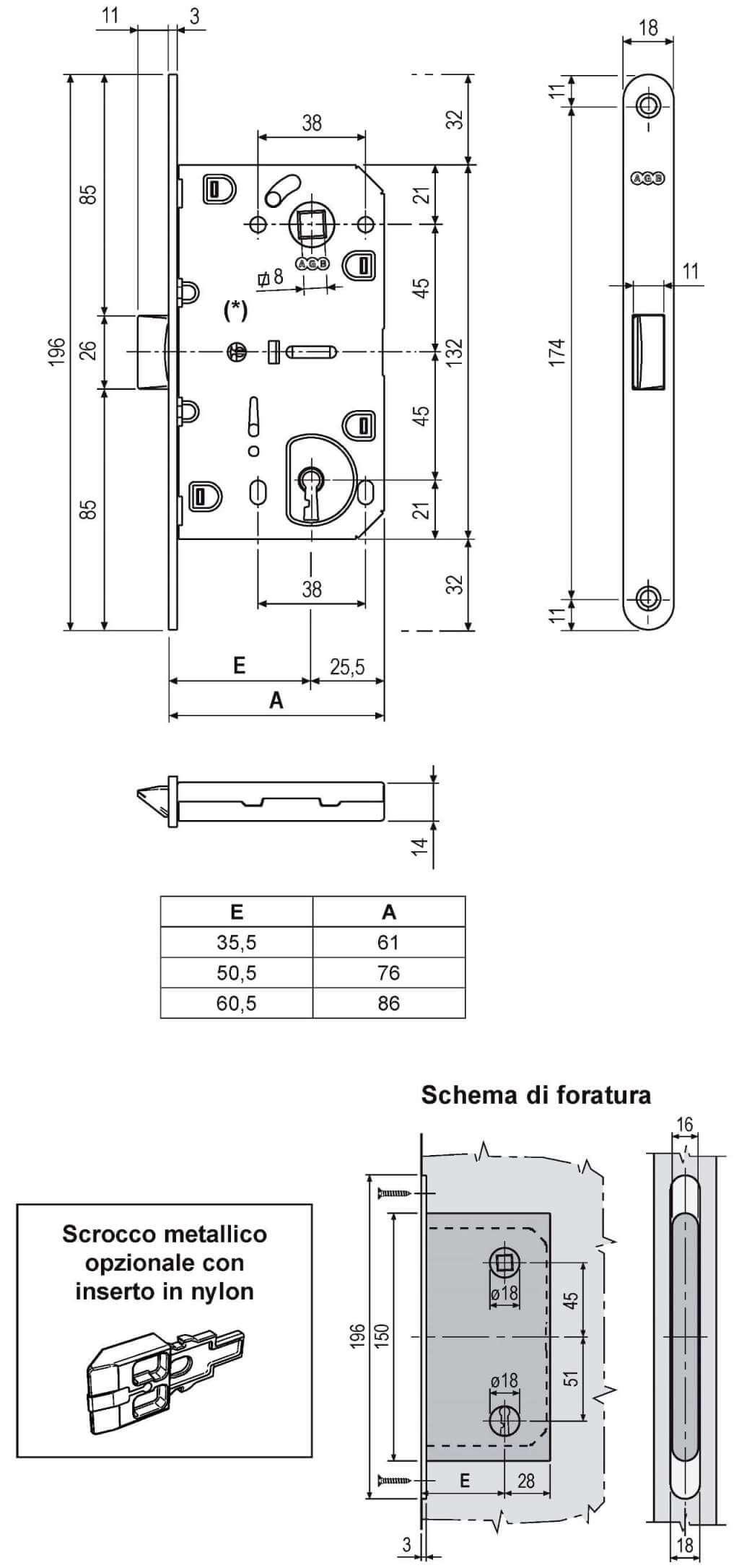

with round edge. Three entries of 35.5, 50.5 and 60.5 mm. Centre distance
90 mm. Perfect compatibility with the front/case dimensions
of the traditional Mediana key hole allows replacement
in existing break-ins. Version with key in 4 mixed combinations.
Steel case with holes for fixing the handles with through
screws. Retractable latch also with the key.
Use
For internal wooden doors. Thanks to QUICK LATCH®, the
patented quick latch hooking system, the installer can
decide the hand of the door directly on site with the
lock already mounted: to change the hand of the door, push
with the tip of a key or screwdriver inside the
indicated hole (*). At the same time, extract the latch, turn it
180° and snap it back into its seat located in the
centre of the front. The latch can also be blocked with the key
inside the lock to facilitate the packaging and
transport operations of the finished doors or to disable the latch with the
door mounted.
